HIGH SPEED TREAD SKIVER
Overview
We have a vast range of experiences not only with extruders, but also with the interfacing machines. Let us introduce some of them on this website.
We also line up peripheral equipment such as high-speed tread skiver and etc.

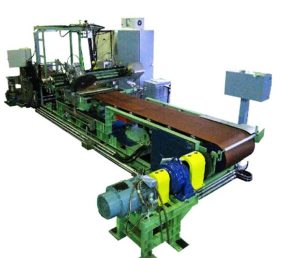

HIGH SPEED TREAD SKIVER
With Nakata Engineering’s cutting-edge technology, 30 cut per minute performance at a set length (a 50% improvement on standard equipment), without stopping the conveyor, is made possible through use of a highly reliable AC servomotor and highly accurate ball screw. In addition, this skiver combines high speed cutting with high accuracy, as well as eliminating the hydraulic unit for quiet, space-saving, energy-saving operation that’s easy on the environment and contributes to overall improvement in production line performance.

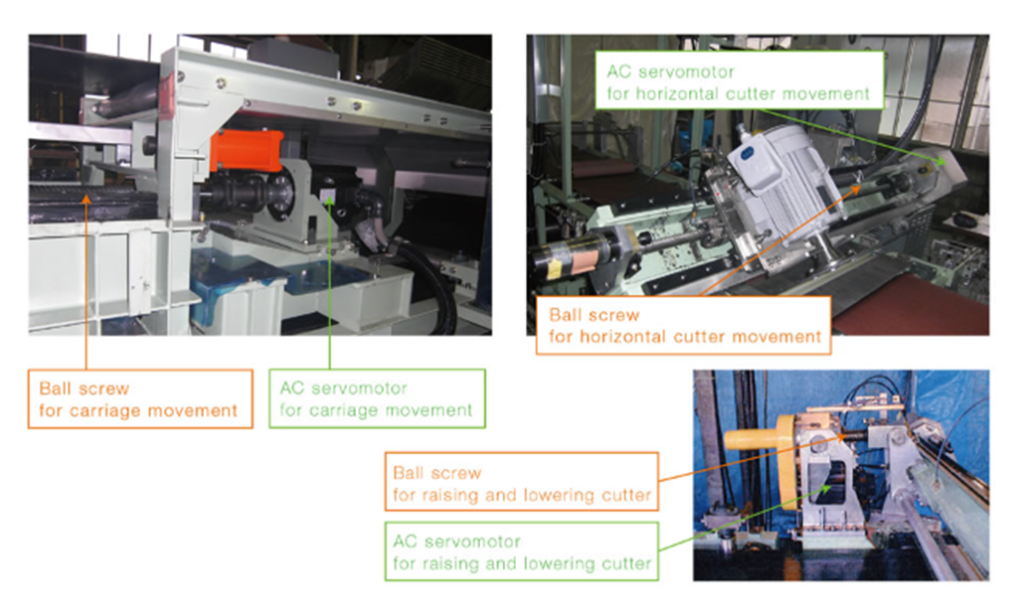

Employing High Speed, High Accuracy AC Servo Drive
Specification
| Main specifications of high speed tread skiver | Main specifications of conventional model |
||
|---|---|---|---|
| Cutter | Cut cycle | Max. 30 cuts/minute (Cut length 1500mm) | Max 20 cuts/minute |
| Line speed | Max. 45M/minute (Cut length 1500mm) | Max 30M/minute | |
| Cut accuracy | ±2mm | ±2mm | |
| Cut length | From 1250 to 3500 mm | From 1250 to 3500 mm | |
| Cut angle adjustment range | From 15 to 30 degrees | From 15 to 30 degrees | |
| Knife | 510mm x 6mm disc | 510mm x 6mm disc | |
| Control | Carriage movement | AC servomotor | DC servomotor |
| Cutter movement | AC servomotor | Hydraulic cylinder | |
| Raising and lowering cutter | AC servomotor | Air cylinder | |
